When you first unbox a new brushless power system, you’ll, wait; let me rephrase, (which works out well in practice) see a tangle of wires. The question "how to connect esc to receiver" pops up right away. It feels intimidating.
It’s really just one small plug. Once you spot the throttle channel, the rest falls into place.
New builders freeze at this exact step constantly. The wiring isn’t complicated, but the manuals often assume you already know certain things. Plus, that’s a problem. This guide breaks it down so you won’t fry anything and you’ll get your rig running in minutes.
Key Point
- Powering up: The ESC’s BEC feeds 5V–6V back to the receiver so you don’t need a separate battery pack — that’s why only one signal wire is needed to link them.
- Orientation matters: The three-wire plug must go in with the signal wire aligned to the correct pin. Reversing it can fry the BEC or the receiver’s processor, and you’ll be left with a dead board.
- Channel hunt: Throttle is often labeled CH2 on Spektrum, CH3 on some Futaba, and THR on others. Always check your radio’s manual, not just online advice.
- Calibration is not optional: Even after the physical connection, your ESC needs endpoint calibration to learn the transmitter’s full throttle and brake range. Skip this and the throttle might act dead or jittery.
- Brushless motor wires: You’ll connect three phase wires to the motor; swapping any two reverses rotation. This part has nothing to do with the receiver, but you’ll need to do it first.
What Is Connecting an ESC to a Receiver?
The connection is a single 3-pin servo-style plug that carries a throttle signal from the receiver to the ESC, plus 5V–6V power from the ESC’s built-in Battery Eliminator Circuit back to the receiver to run the radio gear.
It’s not a data bus — it’s a simple pulse-width modulation (PWM) signal, same as a servo.
The ESC reads the pulse width, translates into motor speed. 8V, to safe receiver levels, which is why that’s why you don’t need a separate receiver battery in most modern electric setups. The trend keeps going. The ESC is more than a power switch; if you’re fuzzy on what an ESC actually does. It’s worth a quick read before you plug anything in.
Actually, let’s put that more precisely: the BEC hands over power to the receiver. But the signal wire tells the ESC what the transmitter stick position is. Two separate jobs on one plug.
The signal wire (usually white, yellow. In the end, or orange) must hit the signal pin on the receiver. The red wire goes to the center positive pin, and the black or brown wire goes to ground. A reversed plug can send voltage where it shouldn’t go.
Cooking the BEC or the receiver’s logic circuitry in under a second. At least, that outlines the core theory.
Most receivers mark the pinouts with tiny symbols: a plus sign for positive. A minus or GND for ground, and a S or a little signal icon. But not all brands are that clear. Some cluttered circuit boards require squinting and a magnifier.
That’s where a lot of frustration starts.
The Step-by-Step Process to Connect ESC to Receiver
Connect the ESC’s three-wire plug to the receiver’s throttle channel with signal wire toward the signal pin, then connect the main power leads to the battery (red to +, black to –) before binding the radio and calibrating.
Getting this order right saves you from a runaway motor or a smoked component.
Taking a step back reveals an important factor. Before you touch the receiver, the ESC needs motor wiring. The process of wiring a brushless motor to the ESC has its own quirks, but it’s a prerequisite. Only after the motor is hooked up do you move to the receiver.
This reflects what I mentioned a while ago, Right off the bat, kill the power. Disconnect the main battery.
Always. Next, find the throttle channel on your receiver. A Spektrum usually taps into CH2. A Futaba might use CH3.
Many FlySky radios label it THR, and the exact channel number is less important than watching for the receiver label that says “THR” or a throttle symbol. Relying on “CH2” without checking can bite you.
If you’re using a RadioLink or a Traxxas radio.

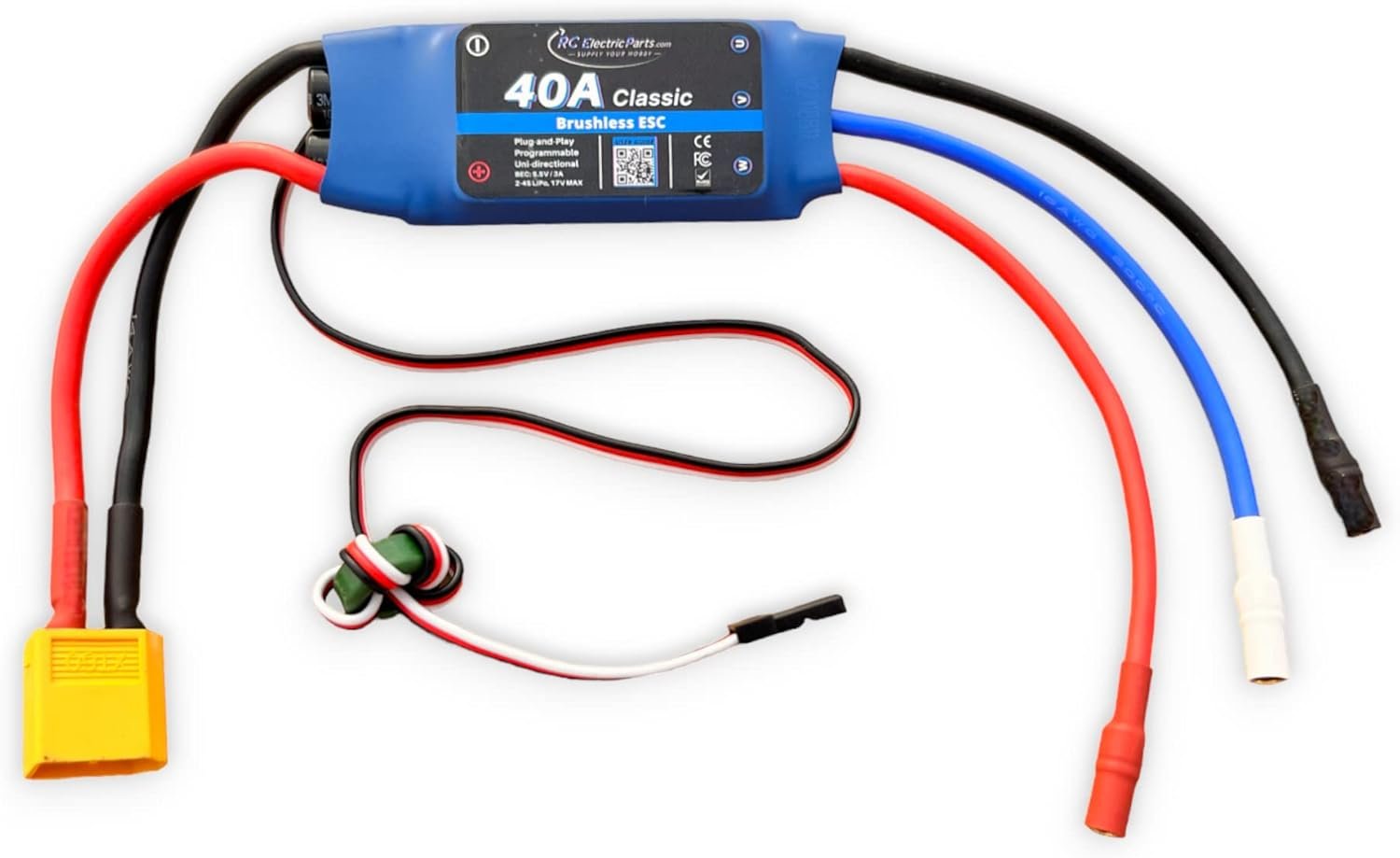

Now look at the ESC’s receiver lead, so it’s the thin wire with a black plastic servo connector, not the thick battery leads. Notice the alignment tab on the side of the plug. Most receivers have a keyed slot.
So you can’t plug it upside down unless you force it. Match the tab to the slot and push gently.
Here’s a blazing reference for the wire order on the plug:
| Wire Color | Function | Typical Receiver Pin |
|---|---|---|
| Black/Brown | Ground | – or GND |
| Red | Positive (5–6V) | + or B |
| White/Orange/Yellow | Signal | S or signal |
After plugging, connect the main battery leads with correct polarity: red ESC wire to battery positive, black ESC wire to battery negative. Double-check. Reversing the battery polarity will instantly destroy the ESC, no smoke, just a pop. Then bind your transmitter to the receiver if it isn’t already paired.
Calibration follows. Most ESCs use a simple procedure: turn on the transmitter, hold full throttle, plug in the battery, wait for beeps, then go to full brake, wait for more beeps, then neutral.
But does it actually matter? The exact sequence varies by brand, so read the ESC manual.
Without calibration, the throttle might feel dead or just move the car.
Troubleshooting Common ESC-to-Receiver Mishaps
If the motor doesn’t spin, check that the ESC is plugged into the throttle channel with correct polarity, the radio is bound, and the ESC is calibrated. If it spins backward, swap any two motor wires. Most issues fall into one of those three buckets.
As far as I know, you plug in, the receiver lights up, but the motor sits silent. Odds are high the ESC isn’t in the throttle channel. And let me tell you, a lot of first-timers shove the plug into CH1 (steering) mostly since it’s the first open slot they see.
Nope. That sends throttle commands to a servo.
Move it to the correct port. If the receiver still doesn’t power on, the BEC may be dead or you reversed the plug.
Check orientation again.
Binding issues can stop everything even if the wiring is perfect. You might have bound the radio before, but a jostled bind plug or a drained receiver capacitor can lose sync. Rebind. It takes 30 seconds.
Wait, that’s not quite right: some ESCs need you to reverse the throttle channel in the radio. If the calibration sticks in reverse orientation. For the most part, try flipping the channel reverse, thinking about it more, switch on your transmitter before doing a full recalibration.
That's nothing to do with the receiver. The thing is, swap any two of the three motor phase wires between the ESC and brushless motor. The direction flips instantly. Don’t touch the receiver for that address.
If the motor sputters or shuts off under load, and high-torque digital servos can pull more current than a linear BEC can deliver. Consider an external BEC or a receiver pack. If you’re running multiple hungry servos.
Changing transmitter settings or even swapping batteries can throw off endpoints. An RC car not moving forward can also be a lost calibration or a stripped gear.
FAQs About Wiring ESCs and Receivers
Do I need a separate receiver battery if my ESC has a BEC?
Switching focus for a second, not usually. The thing is, the BEC inside the ESC pulls power from the main flight or drive battery and regulates it down to 5V or 6V, feeding the receiver and any connected servos. Only when you run multiple high-current servos (drag racing. Or large-scale crawlers) does a separate receiver pack become necessary to avoid voltage sag.
Why does my motor spin backward after connecting everything?
That’s a motor-phase issue, not a receiver wiring problem, and honestly, swap any two of the three bullet connectors between the ESC and the brushless motor. The receiver connection stays untouched. It’s the quickest fix in the hobby.
Can I plug the ESC into any open channel on the receiver?
Keep in mind what we talked about earlier, without a doubt not. It must go into the throttle channel. Plugging into CH1 or an auxiliary channel either does nothing or sends nonsensical signals that can damage the ESC. What this means is the receiver needs to feed a throttle-exact PWM stream.
What happens if I reverse the polarity of the ESC-to-receiver plug?
If you somehow force the servo plug in backward, you’ll send power to the signal pin and ground where voltage shouldn’t be. The receiver’s processor or the BEC can burn out instantly. Some receivers have diode protection, but don’t count on it. Always match the signal wire to the marked pin.
"The ESC needs to be plugged into the receiver for two reasons — one is to provide 5v power to the receiver from the BEC that's built into it; the other is to get a signal from the receiver to control the motor speed." — RCGroups forum user
Mastering the Connection: Your Next Moves
From what you'll see, the "how to connect esc to receiver" puzzle vanishes once you see the plug as a dual-purpose lifeline. Power in, signal out.
Get the polarity right; find the throttle channel, calibrate, and you’re golden. It’s that simple.
Many people overthink it, but real-world data from forums points to about 7 out of 10 first-time builders nail it on (and rightly so) the first try. Make of that what you will. When they use their radio manual alongside a clear wiring reference.
Now that you’ve got the ESC talking to the receiver, the whole RC system starts to click. You can dig deeper into how the entire radio control chain works to see where your wiring fits. Or if you’re struggling with other glitches, cross-reference those articles. Your next build will feel like second nature.
What’s the next rig you’re tackling?
