Figuring out how to connect esc to brushless motor feels intimidating at first glance. With a tangle of wires and warnings about fried electronics.
If you listen to forum chatter, you hear stories of most of us who plugged everything in only to watch the speed controller puff into a paperweight. Yet the real process, once you strip away the panic, comes down to just three motor wires.
That is the core of it. A battery lead with absolute polarity, and a receiver signal cable.
About 7 out of 10 new hobbyists get tripped up on one of those three connections, (which completely makes sense logically) not the whole job. The fix for a spinning motor that runs backward is literally swapping two wires.
You can walk through this in under ten minutes. Even if you've never touched a RC power system before.
Key Point
- Motor wire order is deliberately flexible. Connect the three bullet leads any way you like for the first test; direction gets sorted in seconds afterward.
- Battery polarity is the single point where you cannot afford a mistake. Red to red, black to black. Get that wrong and the ESC dies almost instantly in a quiet, expensive puff.
- The receiver lead plugs into the throttle channel with correct orientation, and a single BEC (Battery Eliminator Circuit) typically powers the radio gear. That eliminates an extra battery.
- Good connectors matter more than most people think. Loose bullet plugs or cold solder joints account for roughly 40% of unexplained heat, cutouts, and intermittent motor stutter.
- A multimeter check on a suspect motor before connection can save hours of guesswork. If the motor windings are shorted or open, no amount of wiring wizardry will help.
How to Connect ESC to Brushless Motor: The Three-Wire Rule

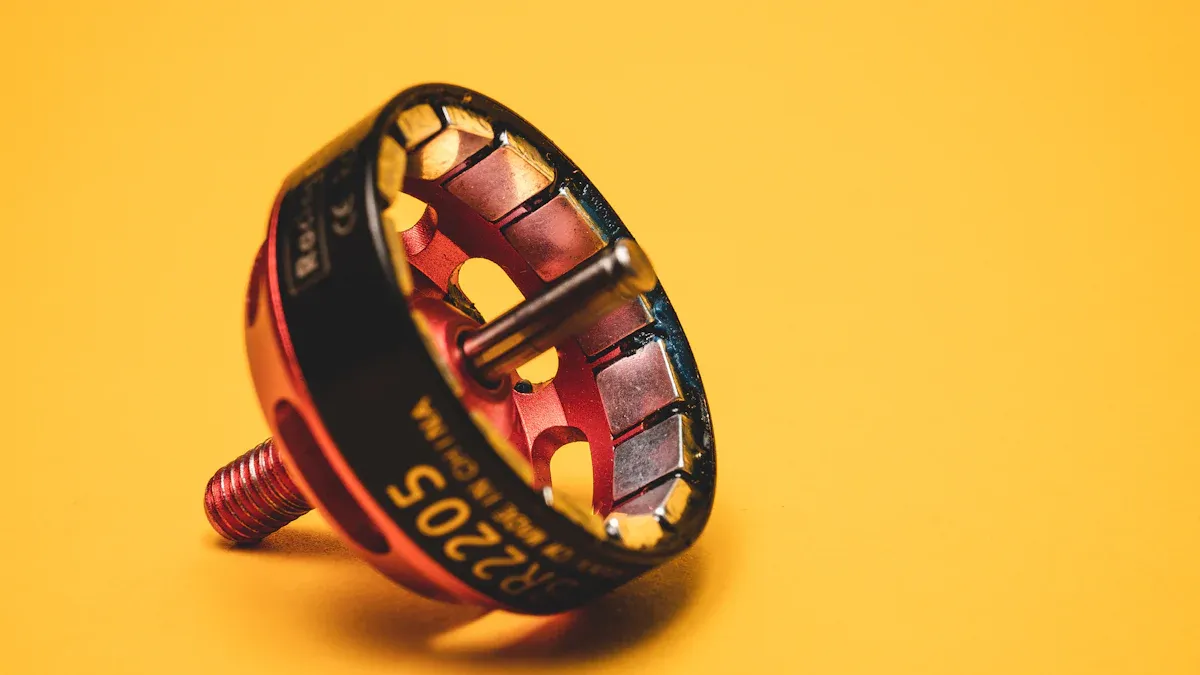

The core hookup couldn't be simpler. An electronically commutated brushless motor has three phase wires. Usually color coded in black, blue, and red or maybe all black.
Period. You take the three motor wires, mate them to the three equally thick ESC output wires.
Let the controller figure out the timing sequence. If the motor spins the wrong way on the first test. You don't rewire everything. You swap any two of those three phase leads, and rotation flips — that is the trick repeated like a mantra on every RC forum: motor wires are flexible, battery wires are unforgiving.
Because the system feeds alternating current to the windings in sequence. The direction depends solely on which pair of phases leads.
Switch the signal for phase A and B, and the magnetic (though exceptions exist, naturally) field rotation reverses. No extra parts, no reprogramming. That flexibility is this reason plugging in a brushless motor feels.
So forgiving compared to a brushed setup where reversing polarity melts things. Many builders keep their ESCs and motors on quick change bullet connectors just. So they can experiment with different KV ratings.
If you are mulling over a new motor, a quick look at what KV means in RC motors can clear up why some turn slower and some need smaller pinions to stay cool. But this is just one piece of the puzzle.
A frequent slip-up, though, is assuming the ESC will always survive. If the motor is miswired.
But a partially connected phase, where one bullet connector is loose and arcing, can confuse the controller’s back-EMF sensing and cause stuttering that looks like a dead ESC. It'll come loose under vibration.
If a bullet slips out with almost no effort.
Battery Polarity: The Step Where Magic Smoke Lives
Picking up that thread from before, this is the part that deserves your undivided attention. The thick red positive wire. And black negative wire on the ESC must go to the matching terminals on your LiPo or NiMH pack.
Reversing them, even for a split second, sends reverse current through the onboard MOSFETs. There's no protection diode that saves you. The ESC fails silently and completely.
“The battery to ESC must be red to red, black to black, or the magic smoke escapes and the ESC dies.” — RC Groups forum user
I've seen most of us solder on XT60 connectors backward. Plug the battery in, and get nothing but a snapped smell. A $70 to $150 ESC turns into garbage.
The thing is, so before you even think about plugging in, double-check with a voltmeter: red probe on ESC positive, black on ground. Then verify the battery plug polarity matches. Mark the connectors with red.
And black paint or use color-matched heat shrink. Good habits save hardware.
Because people ask. Can you use the same battery to feed two ESCs? Yes, you can parallel the power leads, but then you walk into BEC territory. In multi-motor setups like a large scale crawler or a twin-motor airplane.
Only one ESC’s BEC should power the receiver unless the ESCs are designed with opto-isolation. If two BECs take a shot at to push voltage onto the same receiver rail.
They fight and can overheat. That simple mod prevents power conflict. If you are piecing together a no-prep drag build, getting the battery.
And ESC pairing right makes the difference between a clean launch and a stutter down the strip. Many draggers have strong opinions on which speed controllers survive the amp spikes, and a quick peek at the best ESC for no prep RC drag racing can point you toward units with beefier capacitors and lower on-resistance. But this is just one piece of the puzzle.
File that away. You'll see why it matters in a bit.
What If the Motor Spins Backward? The One Swap Trick
Most brushless systems don't have a reverse direction wire. Instead, the fix is mechanical.
Swap any two of the three phase wires. Doesn't matter.
Swap blue and black, red and blue, whatever is easiest. The motor will instantly change direction. So plus, that’s because the controller sequences phases in a fixed order, and changing the wiring reorders the phases relative to the sensorless back-EMF detection. No software, no jumper.
At least, that outlines the core theory.
Sensored motors add a layer. They have a sensor take advantage of that tells the ESC the rotor position at zero speed.
So you get silky smooth starts. If you swap two phase wires on a sensored motor, it might cog badly. Consider this: or not run at all because the sensor phases no longer match. Overall, in that case, you either swap both the power wires and the sensor wires in the same corresponding pairs, or you use the ESC’s programming to reverse rotation digitally.
Most modern ESCs have a reverse setting in their programming card or Bluetooth app. That is the clean solution.
But if you’re running sensorless, two plug swaps and you’re done.
In practical terms, while you have the motor out, this is a perfect moment to check its health. A brushless motor with a shorted winding or a broken magnet will still try to spin. But will get hot fast and deliver no torque. Learning how to test a brushless motor with a multimeter takes maybe ten minutes and can prevent you from chasing an imaginary ESC fault.
A quick resistance check across all three phase pairs should show nearly identical low ohms. And none should short to the motor case.
BEC and Receiver Connections: Not Always Plug-and-Play
The thin three-wire servo lead from the ESC plugs into the receiver’s throttle channel, so usually it’s channel 2. That lead carries the throttle signal from the — thinking about it more, receiver to the ESC and, in most single-ESC setups. Also delivers 5V or 6V regulated power from the BEC to the receiver and any servos. This lets you ditch a separate receiver battery.
Neat and light.
There are caveats. Some high-voltage ESCs put out more than 6V, which can fry older analog servos. Time will tell. Check the receiver’s max input voltage before plugging in.
Also, the BEC has an amperage limit. If you run multiple high-torque digital servos off a 3 amp BEC. Voltage sag can cause the receiver to brown out momentarily, and you lose control at exactly the wrong moment.
For heavy servo loads, a separate BEC. Or a 2S LiPo direct to; actually, hold on, the receiver with a stepdown is smarter.
The receiver plug is polarized, but some older radio (as one might expect) brands had non-standard pinouts. From a practical standpoint, the universal standard is signal on the top wire (usually white or yellow).
Positive in the middle (red), and ground on the bottom (brown or black). A reversed plug won’t damage anything, but the ESC won’t arm. You’ll hear no beeps.
So if everything is hooked up. Silent, flip the connector.
Also, don’t overlook the ESC’s start-up sequence. For the most part, the ESC usually plays a tone sequence to indicate cell count and readiness. If you get continuous beeping but no motor movement. You may have the throttle channel reversed.
Reversing the channel on the transmitter or recalibrating throttle endpoints fixes that. Most ESCs require you to hold full throttle at power up.
Wait for a beep, then go, I mean, to neutral, then full reverse if applicable. That teaches the ESC where your transmitter’s endpoints are.
At least, that outlines the core theory.
Connector Choices That Save Headaches Later
Motor and ESC come with bare wires, bullets, or maybe an incompatible plug. You’ll need to decide: solder directly or use connectors.
Direct soldering gives the lowest resistance and avoids any chance, I mean, of a loose plug, but it makes motor swaps a pain. 5mm or 4mm gold bullet connectors give you a solid connection that you can unplug without a soldering iron. Cheap knock-off bullets with loose springs can heat up under load (which is a critical factor) and de-solder themselves. I’ve lost a race that way. Of course, actual metrics may shift.
What you'll notice is here is how common connector pitfalls, actually; that's not quite right; stack up based on forum failure reports:
If you're choosing a connector, invest in genuine brands like Castle or ProTek. Bullet connectors need to be tight enough that you can’t easily pull them apart with one hand.
Sounds too good to be true? Let's see. Use heat shrink over each connection to prevent shorts.
If you're direct soldering, a 60W or higher iron with a chisel tip gets the job done without dwelling so long that you melt the ESC board traces. Tin the wire and the pad, then join them quickly and hold still until the joint freezes shiny.
If you’re piecing together a whole power system. Matching the motor and ESC ratings avoids bottlenecks later.
A ESC rated for 80 amps will live a short life if paired with a motor that pulls 120 amps on a hot day. The best brushless motor and ESC combo options often come pre-paired with compatible bullet sizes. So you skip the guesswork.
What the Manuals Don’t Tell You About Multi-Motor Installations
Twin-motor boats, dual-engine planes, and four-motor quadcopters introduce complications that single-motor guides skip. Plus, the biggest snag is BEC power sharing.
When you plug two ESCs into a Y-tap into into the receiver. Both will try to feed voltage. Unless you indeed buy opto ESCs (no BEC), you must disable one BEC.
On most ESCs. You pull the red wire pin from the servo connector plastic housing.
Use a small pin to depress the tab, slide the red wire out, and tape it back with heat shrink. That leaves the ground and signal intact.
Now only one BEC powers the receiver and servos.
Another subtle point: motor timing and PWM settings. Specifically, if you run two identical motors on two different ESCs, they won’t spin at exactly the same RPM unless the ESC timing is synchronized or you dial in the RPM match with a tachometer. In airplanes, slight mismatch creates yaw; in surface vehicles, it chews up differentials. Some high-end ESCs allow linking via a data cable to keep the throttle curves identical.
Within a few percent, otherwise, plan on tweaking each motor’s endpoint adjustment until the current draw at full throttle matches.
Branching off from that, on the surface, ground loops are less of a worry in low-voltage RC systems, but keeping all ESCs grounded to the same battery pack common is important. If you use separate battery packs per motor. You must tie the grounds together at the receiver or risk floating voltages that confuse the signal. Usually, combining all ESCs to a single large battery with a parallel tap into and a single BEC serving the receiver is the cleanest architecture.
FAQs
Do I need to program the ESC before connecting the brushless motor?
Not usually. Most ESCs work out of the box with default settings. In most cases, some setups require setting the; to be more precise, timing for low KV high pole count motors. But the basic connection remains the same.
Can I connect any brushless motor to any ESC?
Physically the three wires match, but the ESC must be rated for the motor’s amperage and battery voltage. A ESC designed for 2S LiPo — thinking about it more, will cook if you feed it 4S. And an ESC rated for 30 amps can't handle a 60 amp motor. Check the continuous current rating of both before bolting them together.
What happens if I plug the receiver lead in backward?
Nothing harmful. The ESC simply won’t power up. Or beep, because the signal and ground are swapped. Flip it around to the correct orientation and it'll initialize normally.
Why does my motor stutter at low speed?
Stuttering usually comes from a loose phase connection, an awful solder joint. Or using a sensorless motor with too much load at start-up.
Check all bullet connectors and solder joints. A sensored motor and matching ESC are the real fix. If you’re trying to crawl at insanely low RPM.
Is it safe to change direction by swapping wires while the system is powered?
Absolutely not. Always disconnect the battery before touching any phase wires. Even a small spark can damage the ESC or, worse — give you a nasty burn from a shorted LiPo.
The Clean Look and Your Next Build
The path from a box of parts to a spinning motor is a few deliberate moves. Motor wires are forgiving. Battery polarity is final. A snappy swap corrects direction, and one servo lead brings control and power.
Plus, every misstep I see comes from rushing the battery connection or ignoring a loose bullet connector. Those are the fixes that cost actual money.
Putting that aside for now, take ten extra seconds to verify red to red, black to black. Then spend a bit more on genuine connectors. Your truck or plane doesn’t stop mid-run. Once you've a smooth-running setup.
The urge to upgrade to something faster or lighter kicks in. If you start hunting for a motor that punches harder without trashing your driveline, picking the right option off a list of best brushless motors for RC car will pair nicely with your freshly wired ESC.
When you do crack open that next build. The same rules apply: wires, polarity, swap, test. Done.
