Strip away the body shell and every RC car answers the same question: how do rc cars work? It comes down to two flows running side by side. A low-power signal tells the car what to do.
A high-power circuit does the actual work.
Your trigger sends a command. The receiver hands it to the electronic speed controller, which meters current into the motor. Manufacturer specs confirm most hobby-grade 2.4 GHz systems use channels labeled CH1 for steering and CH2 for throttle.
That split, signal on one side and current on the other, is the entire design in miniature.
How Do RC Cars Work

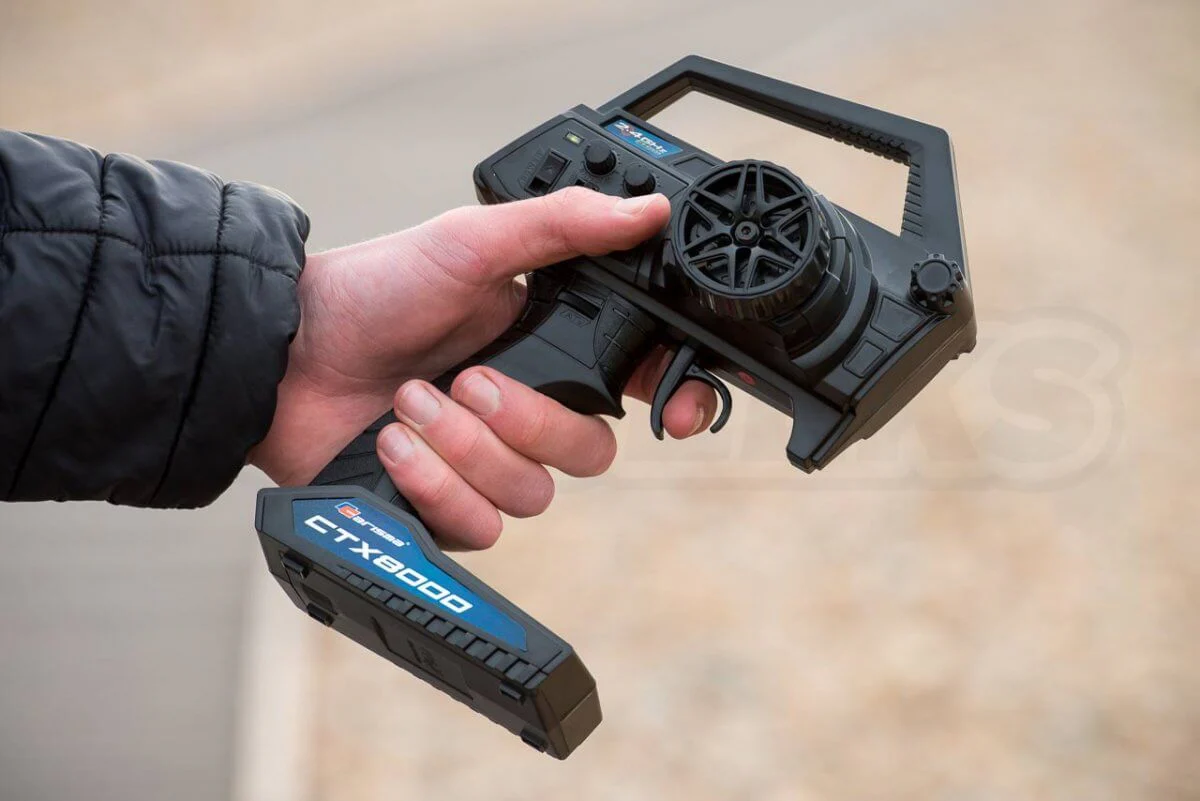

An RC car turns radio commands into movement. You move the trigger or wheel on the transmitter. It sends a 2.4 GHz signal to the receiver inside the car.
The receiver tells the ESC and steering servo what to do. The ESC then feeds battery power to the motor.
Why the Signal Chain Makes More Sense When You Can See It
Most RC explanations stall at the same place. They list the parts in a row and never show how those parts talk to each other. A diagram fixes that in about ten seconds.
Look at a wiring schematic and two separate loops jump out. One carries commands at roughly 5 volts. The other carries motor current anywhere from 7.4 to 22.2 volts.
They meet at the ESC, and that junction is the heart of the car.
The two flows every RC car runs on
The signal flow is tiny and fast. Your transmitter encodes wheel and trigger positions into pulses, and the receiver decodes them. Those pulses then go to the ESC and the steering servo.
The power flow is big and hot. Battery current runs through the ESC's switching circuit and into the motor windings. The ESC decides how much current gets through and how often.
Keep the two flows separate in your head and troubleshooting gets easier. Signal problems show up as glitching or no response. Power problems show up as heat, cogging, or a dead car.
What a wiring diagram shows that a parts list can't
A parts list says "receiver, ESC, motor, servo." A diagram shows the receiver's CH2 output feeding the ESC signal wire. It also shows a separate BEC line feeding the receiver.
Our editorial review of manufacturer manuals found the same three-wire grouping on nearly every hobby-grade ESC. That's signal, positive, and negative. Two wires power the receiver.
One carries the command.
Errors hide in that bundle. Plug an ESC connector in backward on a receiver without keyed plugs, and you find out immediately.
The Signal Chain: Transmitter to Receiver to ESC, Motor, and Servo
How your trigger and wheel become a PWM command
PWM stands for pulse width modulation. It's a repeating pulse where the width of the on-time carries the value. A centered steering wheel produces a pulse of about 1.5 milliseconds.
Full left or full right pushes it toward 1.0 or 2.0 milliseconds.
The receiver repeats that pattern on its outputs. Nothing in this chain is analog. Every command is a timing value, which is why a loose plug causes chaos instead of a slow drift.
Binding, channels, and why CH1 and CH2 matter
Binding is just pairing. The transmitter and receiver share a unique ID so your car ignores the one running next to you. Do it once and the link reconnects on every power-up.
Channel 1 is steering. Channel 2 is throttle. That's a near-universal convention across hobby-grade brands, so a receiver swap rarely means relearning the layout.
Extra channels handle lights, winches, or a second servo.
Where the ESC actually sits in the chain
The ESC is both a listener and a switch. It listens on CH2 for throttle pulses. Then it chops battery current into the motor at high frequency.
Rules from the FCC govern the 2.4 GHz gear sold in the US, so the radio side is tightly regulated. The ESC side isn't. That's where cheap components cut corners and heat shows up.
The Power Chain: Battery to ESC to Motor, Plus the BEC Branch
Brushed vs brushless: what changes inside the motor
Brushed motors push current through physical contacts. Two carbon brushes press against a spinning commutator and reverse the magnetic field mechanically. Simple, cheap, and serviceable.
Brushless motors move that switching to the ESC. The rotor carries permanent magnets while the stator windings get energized in sequence by electronics. No brushes to wear out, more torque per ounce, and noticeably better efficiency.
Sensored vs sensorless and the cogging you'll notice
Sensorless systems guess rotor position from back-EMF. At low RPM that guess is poor, so the motor stutters. That stutter is cogging, and it's normal behavior.
Sensored systems use a Hall sensor board and a small cable to report rotor position directly. Startup is smooth from a dead stop, which matters a lot for crawlers and technical trails.
LiPo vs NiMH and what the voltage actually does
Voltage sets RPM. A 2S LiPo at 7.4 volts nominal spins a given motor slower than a 3S at 11.1 volts. Capacity in mAh sets runtime, not speed.
LiPo packs need balanced charging and a low-voltage cutoff. Lithium transport rules under UN 38.3 explain why packs ship at partial charge.
The Drivetrain: Pinion, Spur, Slipper, Diffs, and Axles
Tracing torque from the motor shaft to the wheels
The pinion sits on the motor shaft and drives the spur gear. That first mesh is the biggest gear reduction in the car. From there, torque runs through the slipper clutch or center diff, down the driveshafts, into the differentials, and out to the axles.
Gear mesh, backlash, and the sound that tells you it's wrong
Gear mesh is the gap between pinion and spur teeth. Slip a strip of paper between the gears and roll it through to set roughly the right backlash.
Too tight and the gears whine and build heat. Too loose and you'll hear a clicking rattle, then find stripped teeth. Sound is your fastest diagnostic here.
Gear diff vs ball diff vs spool in plain terms
| Type | What it does | Best for |
|---|---|---|
| Gear diff | Sealed and fluid-filled, tunable with oil weight | General bashing and racing |
| Ball diff | Adjustable slip via a spring-loaded plate stack | Carpet and low-grip tracks |
| Spool | Locks both wheels to the same speed | Drag and speed runs |
A lower pinion tooth count trades top speed for torque and cooler motor temps. It's the first tuning change most people should make.
Toy-Grade vs Hobby-Grade: What the Inside of the Car Tells You
The single integrated board vs modular electronics
Open a toy-grade car and you'll find one board. Receiver, ESC, and often the servo driver all share the same PCB. When that board dies, the car dies with it.
Hobby-grade cars split the job. Separate receiver, separate ESC, standard-size servo, replaceable motor. You can swap one part without touching anything else.
Which parts you can actually replace
| Part | Toy-grade | Hobby-grade |
|---|---|---|
| ESC | Integrated, not replaceable | Standalone unit |
| Servo | Often a 5-wire unit | Standard 3-wire |
| Motor | Sealed can | Replaceable, standard mount |
| Battery | Proprietary pack | Standard connector |
Aggregate user reviews report that toy-grade failures cluster around the shared board and the charging port. Those are the two parts most exposed to heat and abuse.
What the upgrade path looks like from each starting point
From hobby-grade, the path is brushed to brushless and NiMH to LiPo. Both are bolt-in changes if the ESC supports them.
From toy-grade, there's no real path. Buy a hobby-grade roller and carry the good battery over. As of 2026, entry-level hobby-grade 1/10 RTR trucks start around $180 to $250.
Common Visual Mistakes That Cause Real Problems
Misreading the ESC's three wire groups
The ESC has three distinct wire groups, and mixing them up is the most common first-build error. Two heavy wires go to the battery. Three heavy wires go to the motor.
A small three-wire plug goes to the receiver.
If the motor spins backward, swap any two of the three motor wires. That's it. Don't touch the battery leads.
Servo horn off-center and steering trim maxed out
Center the servo before you install the horn. Power the radio with the steering trim at zero, let the servo settle, then fit the horn as close to straight as the splines allow.
Skip that step and you'll burn the trim to one side to compensate. You lose travel in one direction and the servo runs hot the whole time.
Antenna placement, sensor cables, and connector polarity
Keep the receiver antenna away from motor wires and carbon fiber. Both block or distort the 2.4 GHz signal, and range drops fast.
Route the sensor cable away from the motor can. Heat softens the insulation and the plug works loose. Check connector polarity before the first plug-in, because reversed leads kill ESCs instantly.
Quick Reference Guide: Wiring, Gearing, and Setup at a Glance
Signal and power path cheat sheet
| Path | Route | Voltage |
|---|---|---|
| Signal | Transmitter to receiver, then CH1 servo and CH2 ESC | ~5V pulses |
| Power | Battery to ESC to motor | 7.4V to 22.2V |
| BEC | ESC to receiver to servo | 6V to 8.4V |
Trace a fault by asking which path it lives on. No steering and no throttle points at the receiver or radio link. Throttle only points at the ESC or motor.
Gearing and fluid weights by surface
Start with the stock pinion and change one thing at a time. Drop two teeth for hot days or loose dirt. Add a tooth or two for open asphalt and cool air.
For diffs, thinner oil (around 5k to 10k) frees up the car on loose surfaces. Thicker oil (30k and up) tightens it for high-grip carpet.
Pre-run checklist before the wheels touch the ground
- Transmitter on first, then the car.
- Failsafe set and tested with the radio off.
- Steering and throttle directions confirmed.
- Gear mesh checked with the paper strip.
- Battery charged and connectors seated.
- Tires and wheel nuts tight.
Run for five minutes, then touch the motor and ESC. Warm is fine. Too hot to hold means stop and gear down.
Frequently Asked Questions
How does an RC car steer without a steering wheel?
A servo turns the front wheels. The receiver sends it a pulse based on your transmitter wheel position. A servo saver absorbs impacts so the gears survive a hit.
What does the ESC do in an RC car?
The ESC meters battery current into the motor and powers the receiver. It also handles braking, reverse, and low-voltage cutoff. Think of it as the car's throttle body and brain combined.
Why does my RC car cog at low speed?
Cogging is normal on sensorless brushless systems. The ESC can't read rotor position at low RPM, so it stutters. A sensored motor and ESC combo fixes it.
Can I put a LiPo in a toy-grade RC car?
No. Toy-grade boards have no low-voltage cutoff, so a LiPo will over-discharge and can puff or catch fire. Stick to the pack the car shipped with.
How fast do hobby-grade RC cars go?
Most 1/10 brushed trucks run 20 to 30 mph. Brushless 3S setups commonly hit 40 to 50 mph. Speed-run builds go far higher, but they need gearing and heat checks.
What breaks first on an RC car?
Gears, bearings, and tires wear first. Stripped spur gears from bad mesh and dirty bearings from wet running top the list. Check both after every few packs.
