Most people who ask what does kv mean in rc motors get told "RPM per volt" and stop there. That's technically right, but it leaves out the part that keeps your ESC alive. KV describes unloaded RPM per volt, measured with no prop and no gearing attached.
Add real load and the number drops fast.
Manufacturer specs typically quote KV at a nominal voltage, and a 2207 motor rated 2400KV on 4S works out to about 40,320 RPM on paper. Under a 5-inch prop it won't get near that. Voltage sag and prop load pull it down hard, and that gap is where most bad setups are born.
What Does Kv Mean in Rc Motors
KV in RC motors means RPM per volt of input. A 1000KV motor spins about 1000 RPM per volt with no load. On 4S it targets roughly 14,800 RPM unloaded.
KV is not a power rating. It does not measure torque.
No-load RPM vs loaded RPM
No-load means the motor spins free with nothing bolted to the shaft. Manufacturers measure KV that way, usually at a set voltage and room temperature. Add a prop, a gearbox, or a car's drivetrain and the motor slows down.
The size of that drop tells you how hard the system is working.
On a bench, a 2400KV motor on a fresh 4S pack might hit 38,000 RPM bare. Fit a 5-inch tri-blade and it may settle near 26,000. That drop is load, and it's normal.
A drop so steep the motor can't hold RPM is not.
KV vs Kt, torque, and efficiency
KV and Kt are two sides of the same coin. Kt is the torque constant, and in SI units it's roughly 9.549 divided by KV. So a 1000KV motor makes about 0.0095 N·m per amp of current.
Lower KV motors generally deliver more torque per amp. They tend to swing bigger props at lower RPM, which is often the more efficient path. Higher KV isn't automatically more power, though.
Power comes from volts times amps, and the prop decides how many amps get pulled.
Why KV labels differ across brands and motor sizes
KV isn't a standardized rating. Brands measure at different voltages and temperatures, and ±5% drift between identical motors is common. Stator size, magnet grade, and winding termination all shift the real figure.
That's why a 2207 1800KV and a 2814 1800KV behave nothing alike. Compare motors within the same family and brand. Cross-brand KV comparisons are a trap.
Why the Wrong KV Choice Can Burn Motors, ESCs, and LiPos
If KV is too high for your prop and voltage, current climbs. Current squared times resistance equals heat, and heat is what kills hardware. That's the whole story in one line.
Overpropping and too-high KV
A high-KV motor wants to spin fast. Give it a big prop and it fights the load, pulling far more current than the label suggests. Windings cook, insulation breaks down, and the motor shorts.
Overpropping is one of the most commonly reported causes of motor failure in hobby builds. If your motor comes down too hot to touch, the prop is too big or the KV is too high. Fix one of them before the next flight.
Voltage sag, heat, and magnet damage
If the pack can't deliver the current, voltage sags under load. The ESC pulls more amps trying to hold RPM, which generates more heat. It's a spiral, and it ends with smoke.
Neodymium magnets start losing strength somewhere between 80°C and 120°C depending on grade. Once that happens, effective KV rises and the motor gets permanently weaker. There's no reset for that.
Desync, cogging, and ESC stress
High KV plus high pole count plus aggressive timing can outrun the ESC's commutation. You get stutter, desync, or a dead-stick landing. Back off timing, lower PWM frequency, or drop KV.
If it still desyncs, the ESC is undersized for the motor.
Matching KV to Voltage, Prop Size, Gearing, and ESC Limits

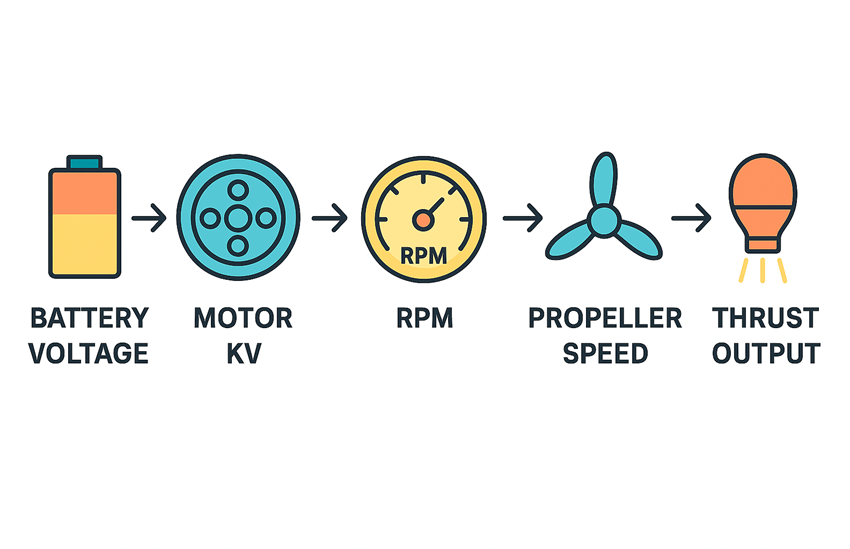

The quick RPM estimate and its limits
Multiply KV by pack voltage to get no-load RPM. A 900KV motor on 6S (22.2V nominal) gives 19,980 RPM. Then knock off 15% to 30% for load and sag.
That range is your realistic operating window.
Cell count, C-rating, and current draw
Cell count sets the ceiling. Doubling voltage doubles the no-load RPM at the same KV, and that's why racers drop KV when they move up a cell.
| Build type | Common KV | Cell count | Prop size |
|---|---|---|---|
| 5-inch freestyle | 1700-2400 | 4S-6S | 5 inch |
| 7-inch long range | 1100-1500 | 6S | 7 inch |
| 3-inch cinewhoop | 3000-4500 | 4S | 3 inch |
| 10-inch heavy lift | 300-400 | 6S-12S | 10 inch |
Match the pack's C-rating to the current the motor will actually pull. A 1500mAh pack at 100C claims 150A, but real delivery is lower and sags sooner than the label promises.
Motor size, pole count, timing, and PWM settings
Motor codes like 2207 mean a 22mm stator diameter and 7mm height. A bigger stator handles more current at the same KV. Higher pole counts give smoother torque but need more commutation per revolution.
As of 2026, most ESCs auto-detect timing and PWM. Manual timing still matters on high-KV setups where desync shows up under hard throttle punches.
Safe Bench-Test Workflow Before You Fly, Drive, or Float
Never test with a prop fitted first. Spin the motor bare, confirm direction, then add load in small steps. Ten minutes of bench work saves a wrecked airframe.
- Remove the prop or disconnect the drivetrain.
- Clamp the motor or model so it can't move.
- Put a watt meter between the pack and the ESC.
- Run 10-second bursts at 25%, 50%, and 75% throttle.
- Check motor, ESC, and pack temperature after each burst.
- Fit the prop and repeat with short runs.
- Log current, RPM, and voltage before the first real flight.
Watt meter, tachometer, thrust stand, and data logging
A watt meter gives you amps and watts in real time. A tachometer confirms RPM against your KV estimate. A thrust stand turns guesswork into numbers, and a data logger catches spikes you'd never see by eye.
Prop removal, arming switches, and LiPo fire safety
Treat every LiPo like it wants to burn. Charge on a fire-resistant surface, use a LiPo bag, and never leave a pack charging unattended. Keep a suitable extinguisher within reach.
A physical arming switch or plug keeps the system dead until you're ready. Follow the AMA Safety Code for model setup and range checks. It's the baseline most clubs enforce.
KV by RC Use Case: Planes, Multirotors, Cars, Boats, and Helis
Airplanes and gliders
If you want a slow, draggy airframe, pick low KV and a big prop. Trainers and gliders usually land in the 800-1200KV range on 3S or 4S. Aerobatic 3D planes want punch, so they run higher KV with a smaller prop.
FPV and cinematic multirotors
Five-inch freestyle quads sit at 1700-2400KV on 4S-6S. Long-range 7-inch builds drop to 1100-1500KV on 6S. Heavy lifters go down to 300-400KV and run 12S with big, slow props.
If you're flying any of these in the US, the FAA's recreational drone rules apply.
Cars, boats, and helicopters
Cars follow the same logic. A 1/10 basher might run 3000-5000KV on 2S, while a crawler wants low KV and tall gearing. Boats typically use 1500-2200KV on 4S-6S with water cooling.
Helicopters care more about governed head speed than raw KV, so the gearing does most of the work.
Common KV Mistakes and How to Troubleshoot the Symptoms
Most KV problems show up as symptoms, not numbers. Learn to read the symptom and the fix usually picks itself.
Does higher KV mean more power?
No. Higher KV means more RPM per volt, and that's it. A 2400KV motor on 4S doesn't out-power a 900KV motor on 6S just because the number is bigger.
Power comes from the prop and the current it pulls.
The same mistake runs the other way. Lower KV doesn't guarantee more torque. It just means fewer RPM per volt, which suits bigger props and gearboxes.
What symptom points to what cause?
Use this as a first pass before you start swapping parts.
| Symptom | Likely cause | First fix |
|---|---|---|
| Motor too hot to touch | KV too high for the prop | Smaller prop or lower KV |
| Weak thrust, cool motor | KV too low or prop too small | Bigger prop or higher KV |
| ESC shuts down mid-run | Overcurrent or thermal cut | Measure current, raise ESC rating |
| Short flight times | System running inefficiently | Lower KV, bigger prop |
| Desync at high throttle | Timing or PWM mismatch | Lower timing, check ESC spec |
Change one variable at a time. Swapping KV and prop together tells you nothing about which one fixed it.
When should you stop guessing?
Stop when a motor comes down hot twice in a row. That's a pattern, not bad luck. Ask a club member with a watt meter, or message the manufacturer with your motor, prop, cell count, and measured current.
KV Decision Guide: What to Choose and What to Verify Before Power-Up
Choose by target RPM, load, and cooling margin
Start with the RPM you actually need, not the KV number. Work backwards from the prop. A 7-inch prop wants roughly 14,000 RPM, and on 6S at 22.2V nominal that works out near 630KV before load.
Now add margin. Divide by 0.75 to cover sag and prop drag, which lands around 840KV. Pick the closest real motor, then check its max current against your ESC's continuous rating.
Verify with manufacturer data and bench measurements
Manufacturer thrust tables are the best free starting point you'll get. They usually list prop, voltage, amps, thrust, and efficiency at several throttle points. Use them to sanity-check your math.
Then bench it. Ten-second bursts with a watt meter tell you more than any chart. If measured amps sit well above the table, your prop or voltage is wrong.
What are the red flags before power-up?
- KV times pack voltage gives an RPM the prop maker never tested
- Motor max current is close to the ESC's continuous rating
- Pack C-rating times capacity falls under the expected amp draw
- No airflow over the motor or ESC
- Wires or connectors thinner than the current demands
Hit two or more and you should drop KV or shrink the prop first. That's cheaper than replacing a burnt stack.
Frequently Asked Questions
Does higher KV mean more power?
No. KV only sets RPM per volt. Power depends on voltage, current, and prop load.
A low-KV motor on high voltage can easily out-power a high-KV motor on low voltage. Match the whole system, not the number on the can.
Does lower KV mean more torque?
Per amp, roughly yes. Lower KV motors have a higher torque constant, so they draw less current for the same torque. That's why they suit big props and gearboxes.
Total torque still depends on stator size and how much current the motor can handle.
Can I run the same KV on 4S and 6S?
You can, but the motor spins about 50% faster on 6S. That usually means a smaller prop and a fresh current check. Most pilots drop KV when they move up a cell count.
Keep the KV and you should shrink the prop.
How does KV affect prop size and gearing?
Higher KV wants smaller props or taller gearing. Lower KV wants bigger props or shorter gearing. That's the trade.
Pick your prop first, then choose KV to hit a sensible RPM at your pack voltage.
Is KV the same as kV?
No. KV here means RPM per volt. kV with a capital V means kilovolts, a voltage unit. Same letters, completely different meaning.
You'll only see kilovolts on high-voltage power systems, never on an RC motor label.
