You can fix most issues by checking your batteries and memory card, as browning trail camera troubleshooting often reveals that power or storage errors are the main culprits. If your camera fails to capture images or won’t turn on, start by inspecting these two components first. Most units stop working correctly when the voltage drops too low or the SD card reaches its file limit.
Fixing Browning trail camera trigger issues
When a camera stops recording, the cause is usually related to the environment or the hardware settings rather than a broken sensor. The most common cause is a depleted power source that can no longer provide the necessary “surge” current to fire the infrared flash or write high-resolution data to the card. If you use standard alkaline batteries in cold weather, the internal chemical reaction slows down significantly, making the battery appear dead even when it has remaining capacity.
Another frequent issue involves the passive infrared (PIR) sensor. This sensor detects changes in heat and motion within its field of view. If you place the camera in an area with high sunlight or heavy brush, the sensor may struggle to distinguish between a moving animal and background noise.
Using a high-speed SD card is recommended to ensure the camera can write data quickly enough to keep up with rapid activity. If your card is too slow or corrupted, the camera will simply stop recording once the buffer fills up.
Test Your Power and Connections
To begin, ensure your camera has a fresh set of high-quality lithium batteries. Lithium cells hold voltage much better than alkaline types, especially in temperatures below 40 degrees Fahrenheit. If you’re using rechargeable batteries, confirm they’re fully charged and rated for the high-drain requirements of digital scouting cameras. A camera that powers on but shuts down when the flash fires is almost always suffering from a voltage drop.
Check the battery compartment for any signs of corrosion. If you see white or blue powder on the contacts, clean them with a cotton swab lightly dampened with white vinegar to neutralize the corrosion, then wipe dry.
Never use water or liquid cleaners, as moisture trapped inside the housing will cause internal circuit board damage. Once cleaned, insert the batteries and observe the status light. If the light blinks or remains solid during the startup sequence, the camera is successfully drawing power.
If you suspect a hardware failure, try a “hard reset” by removing all batteries and the SD card for at least 60 seconds. This clears the temporary memory of the camera’s processor. If the device remains unresponsive after this, it’s likely a hardware failure that requires professional repair. Don’t attempt to open the main housing or touch internal components, as this voids your warranty and poses a risk of electrical shock.
Format Your SD Card Properly
The memory card is a frequent point of failure in digital scouting equipment. Many cameras require the card to be formatted in a specific file system, usually FAT32, to communicate correctly. If your camera displays a “card error” message or fails to save images, the file system on the card has likely become corrupted.
First, remove the card and insert it into a computer. Copy any important photos to your hard drive, as the next step will erase everything on the card. Format the card using the camera’s internal menu settings. If your computer doesn’t offer FAT32 (often the case with cards larger than 32GB), you may need to use a third-party formatting utility. Once formatted, return the card to the camera and perform a test walk in front of the lens.
If the camera still refuses to save images after a fresh format, the card’s controller chip has likely reached the end of its life. SD cards have a limited number of write cycles, and heavy use in a trail camera will eventually wear them out.
Replace the card with a new, high-speed unit from a reputable brand. If a brand-new card also fails, the internal card reader slot is the likely culprit, which is a non-repairable component for the average user.
Adjust Your Detection Settings
If your camera is taking pictures of nothing or missing movement, you need to adjust the sensitivity and trigger speed. Most cameras allow you to set the PIR sensitivity to high, medium, or low. If you place the camera in an open field, set the sensitivity to high to catch distant movement. If you place it in a dense forest, use medium or low to prevent “false triggers” caused by swaying branches or shifting shadows.
The trigger speed setting also affects performance. A faster trigger speed captures the subject closer to the center of the frame but uses more power. If you notice the camera is taking images of the back half of an animal, increase the sensitivity and move the camera closer to the trail.
If the camera is taking too many empty photos, try pointing it more parallel to the trail rather than directly at it. This allows the sensor to detect the animal’s heat signature across the field of view for a longer time before it passes the lens.
Keep in mind that the detection range varies based on the size of the animal. A large deer will trigger the sensor at a much greater distance than a small fox. If you aren’t seeing the animals you expect, try moving the camera lower to the ground, roughly 24 to 30 inches, to align the sensor with the animal’s natural line of sight.
Avoid Common Troubleshooting Mistakes
- Using old batteries with new ones: This causes the weak batteries to drain the energy from the new ones, leading to immediate power failure.

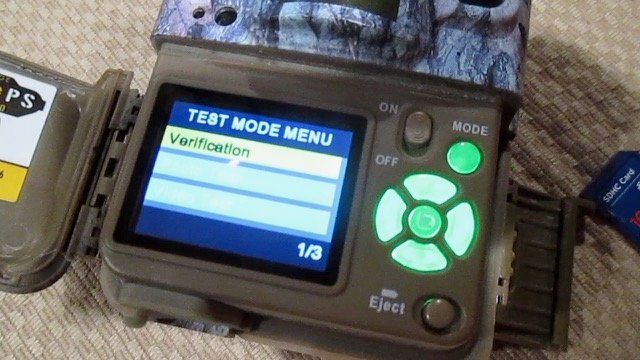

- Leaving the camera in test mode: Many users forget to switch the camera from “test” to “on,” which means the unit stays in standby and never captures photos.
- Forgetting to set the date and time: This makes it impossible to organize your photos or understand the movement patterns of the animals you’re tracking.
- Using cards larger than the manufacturer’s limit: Some older models can’t read cards over 32GB; always check your specific model’s manual for the maximum supported capacity.
- Cleaning the lens with abrasive cloths: This creates tiny scratches that diffuse infrared light, resulting in blurry night-time images.
Prevent Future Camera Issues
| If you’re doing this | Do this instead | Why |
|---|---|---|
| Using alkaline batteries | Use lithium batteries | Lithium handles cold weather and high-drain bursts better. |
| Leaving the card full | Format the card monthly | A full card slows down the write speed and causes errors. |
| Aiming at the sun | Aim toward the North | Prevents lens flare and false triggers from moving light. |
| Using cheap memory cards | Use name-brand “Class 10” cards | Quality cards prevent data loss and write errors. |
Alkaline batteries often leak when they drain, which can permanently corrode your camera’s internal contacts. If you live in a climate where temperatures drop below freezing, switch to lithium. Alkaline cells experience increased internal resistance in the cold, while lithium maintains a more stable voltage.
Always format your memory card inside the camera to ensure the file system matches the camera’s specific requirements. If you see a “card error” message, stop recording immediately to prevent overwriting existing files.
When positioning your camera, avoid placing it directly in front of swaying tree branches or tall grass. These objects trigger false motion alerts that drain your battery in hours. If you must face a high-traffic area, set your sensitivity to low. This simple adjustment prevents the sensor from waking up for every passing insect or blowing leaf.
Frequently asked questions
How long should the batteries last in my trail camera?
Batteries typically last 3 to 6 months depending on usage and environmental conditions. Lithium batteries provide the maximum number of triggers because they maintain a stable voltage output. Note that high-frequency night-time photography will significantly reduce this lifespan.
Why is my trail camera taking blurry night photos?
Night photos appear blurry because the camera keeps the shutter open longer to capture enough light. Mounting the camera on a stable surface reduces vibration and improves clarity. Ensure the subject is moving across the frame rather than directly toward the lens.
Can I fix a trail camera that won’t turn on?
If your unit won’t turn on, clean the battery terminals and verify each cell provides 1.5 volts. A dead internal power regulator is the likely cause if the camera remains unresponsive after a hard reset. Don’t attempt to open the case for internal repairs.
Is it safe to use a larger SD card than the manual suggests?
No, using a card larger than the maximum capacity listed in your manual often causes the camera to fail. The internal software is designed to manage a specific range of memory addresses. Always verify the maximum card size for your model before purchasing a new card.
Why are my trail camera photos showing the wrong time?
Date and time settings are likely incorrect because the camera lost its internal clock memory after a total power drain. You must manually reset these settings through the setup menu whenever you replace completely dead batteries. Some models rely entirely on the main battery pack.
How often should I format my SD card?
You should format your SD card every time you clear images to prevent file system fragmentation. Formatting inside the camera ensures the file structure matches the device’s specific requirements. This simple step prevents the majority of “card error” messages experienced in the field.
Conclusion
If you have tried fresh batteries, a new formatted memory card, and verified your placement, but the camera still fails to capture movement, the PIR sensor or the internal processor has likely failed. At this point, contact the manufacturer’s customer service department to check your warranty status or professional repair options.
